Jentner Plating Technology

JENTNER's wide variety of offers includes not only the creation of plating solutions and galvanic devices, but the design of taylor-made complete solutions and process enhancements as well.



Since it's foundation the Pforzheim-based traditional enterprise is synonymous for high standards in quality, precision and expertise.
The company's know-how bases on decades of experience in the field of galvano technique and surface refinement.


Jentner Rhoidum

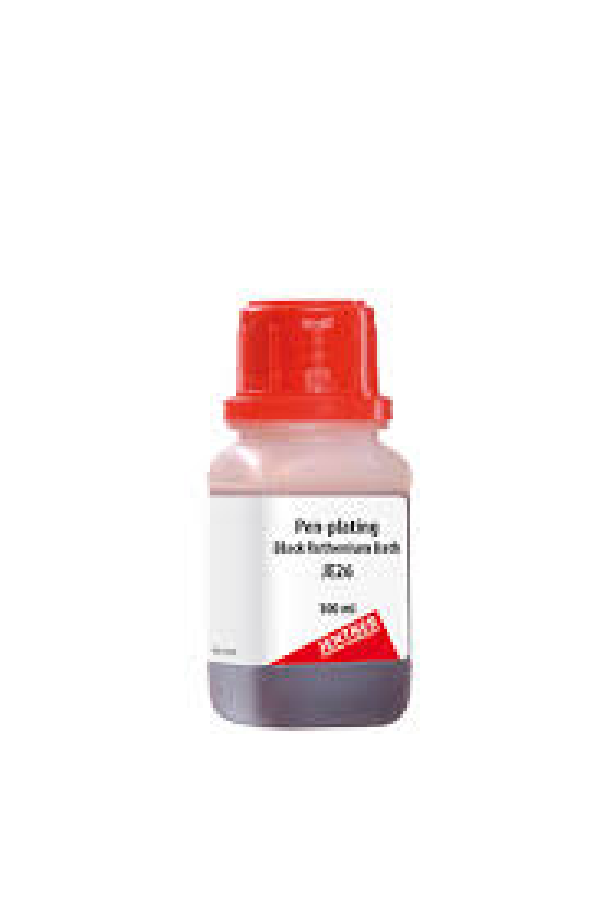

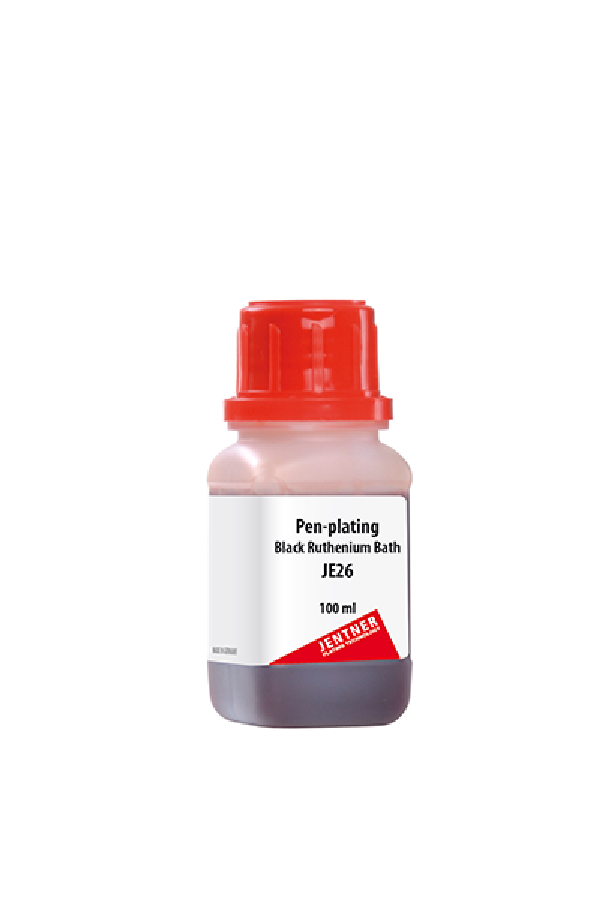

JE 26

The ruthenium bath JE26 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a dark anthracite-grey colour.



Ruthenium content: 2g Ru/100 ml
Tension: 6-10 Volt
Bath temperature: Room temperature

Jentner Rhodium
JE28-1

The rhodium bath JE28-1 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a brilliant white colour and they are hard and abrasion resistant. JE28-1 deposits uniform rhodium layers and has a strong colour consistency.
Rhodium content: 2g Rh/100 ml
Tension: 10-11 Volt
Bath temperature: Room temperature

Jentner Color Gold
JE 210


The ruthenium bath JE26 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a dark anthracite-grey colour.

Ruthenium content: 2g Ru/100 ml
Tension: 6-10 Volt
Bath temperature: Room temperature

Jentner Color Gold
JE26

The ruthenium bath JE26 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a dark anthracite-grey colour.

Ruthenium content: 2g Ru/100 ml
Tension: 6-10 Volt
Bath temperature: Room temperature

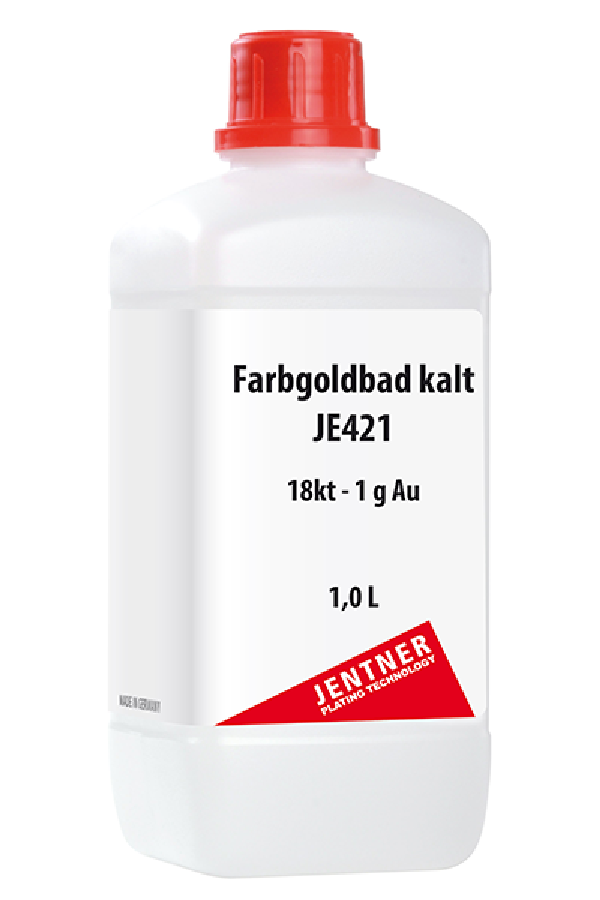

Jentner Colour Color
JE110

BThe colour gold bath JE421 deposits decorative gold layers in 18ct colour. The attainable layer thickness is max. 0,1-0,2 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line Je4xx work with room temperature so there is no heating element needed.

Gold content: 1g Au/l
Tension: 3 Volt
Bath temperature: 20-25°C
Exposition time: 10-30 sec.

Jentner Rhodium

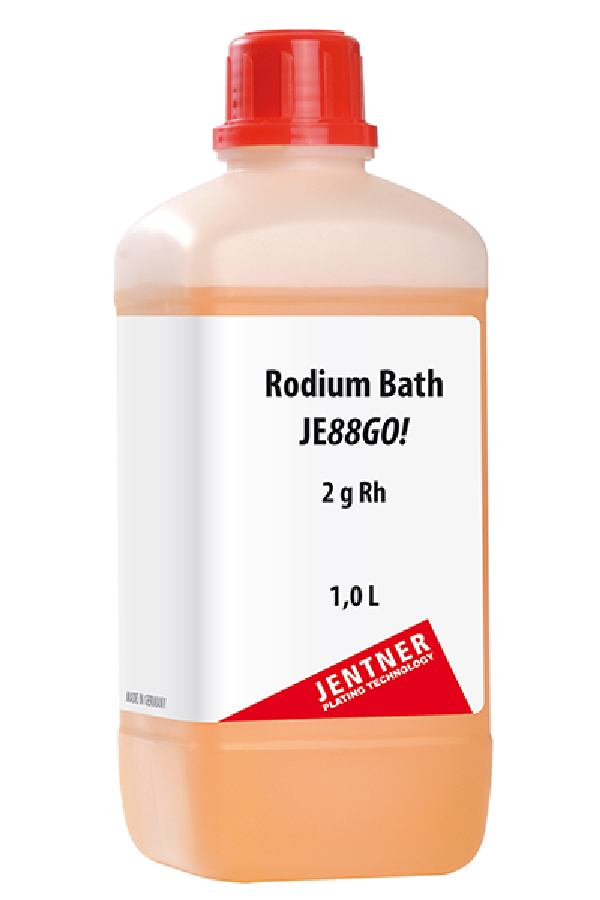

JE88GO!

The rhodium bath JE88 deposits mirror shining, brilliant white, magnificent hard and abrasion resistant rhodium layers. It is preferably used for decorative coatings in the jewellery industry. In many cases the rhodium electrolyte is used as tarnish protection for silver products. Coatings up to 1,5 µm can be deposited.

Rhodium content: 2g Rh/l
Tension: 2-3 Volt
Bath temperature: 25-45°C
Exposition time: 2 min. (1-5 min.)

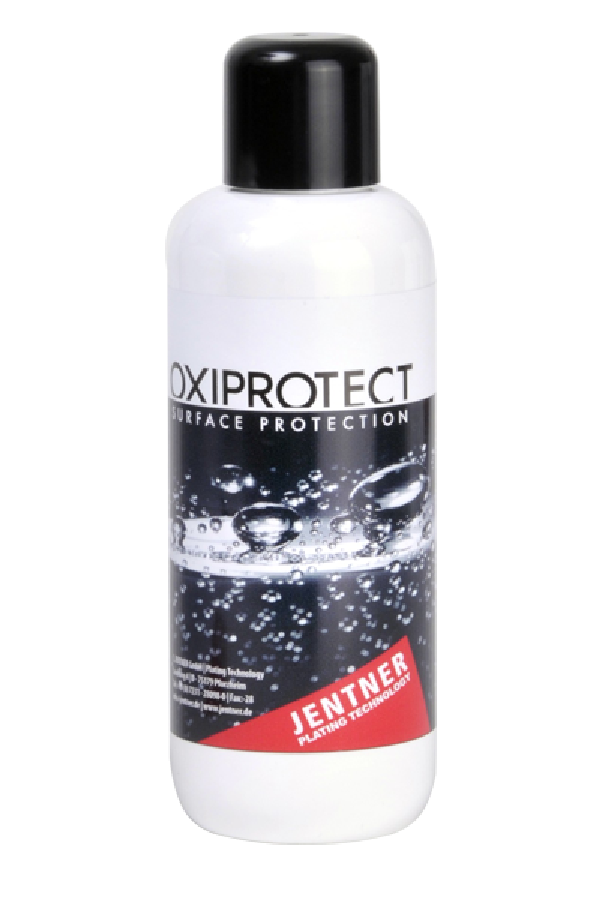

Jentner
OXIPROTECT JE790

The antitarnish solution OXIPROTECT JE790 is excellent suitable as protection system for silver surfaces and low alloyed precious metals like e.g. red gold. It protects effectively against oxidation and discolourations. Due to the low coat thickness it is optical absolutely invisible. The brilliance of the base material is conserved. Contact resistance and solderability remain almost unaffacted. OXIPROTECT is dirt-repellent and water-resistant and furthermore it improves the scratch resistance of the surfaces. The bath is applied in a dive procedure.



Jentner

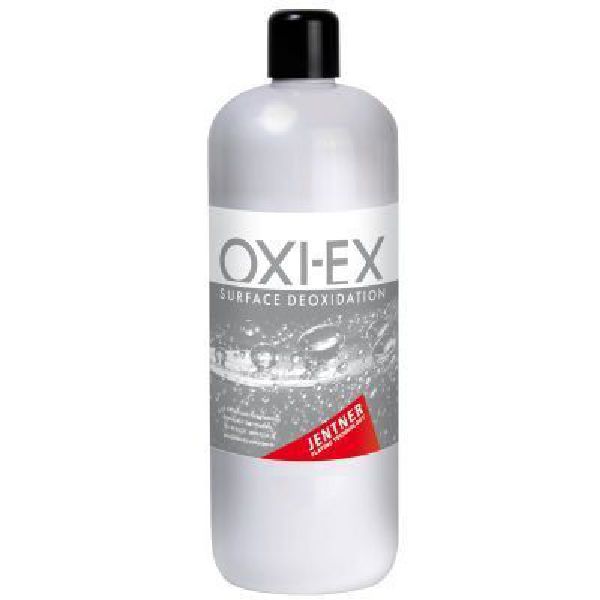

OXI-EX
JE 709

OxiEx JE 709 is a water-based deoxitation agent which is used to remove sulfid and oxid layers from silver surfaces and low alloyed gold. OxiEx can can be used for different decorative and technical applications. The ready-to-use solution enables an easy handling and it is suitable for brush and dive procedures.

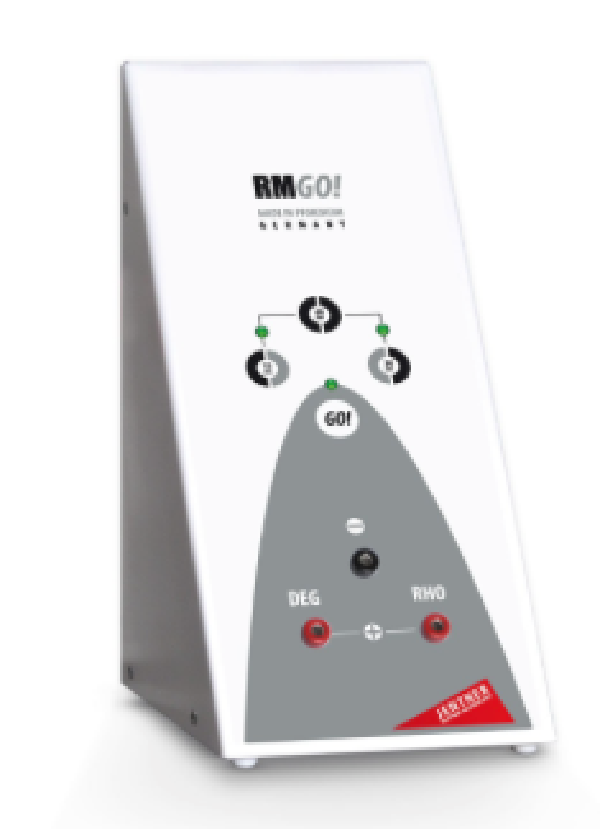

Jentner Rhodium Machine RM GO!

User friendly German quality

With the new small electroplating RMGO! Jewelry can easily be degreased electrolytically, rhodium-plated and color-gilded.
Pre-set processing times and voltages, together with an automatic energy cut-off, allow a professional end result.
The time intervals can be selected between 15, 30 or 60 seconds.

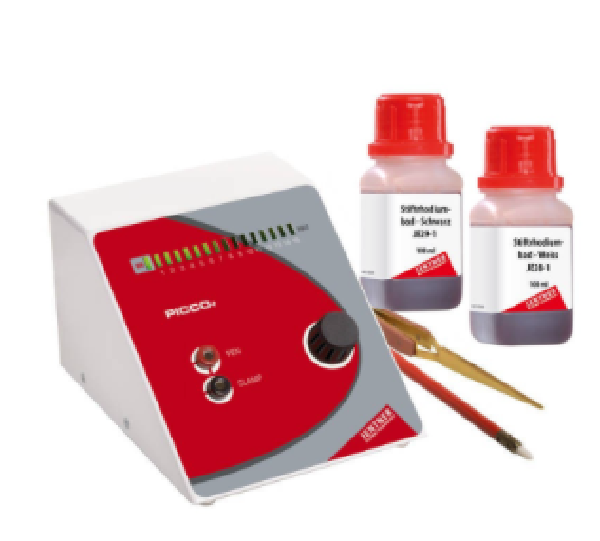

Jentner Pen Plating
 PICCO+

One of Bootstrap 4's big points

The pen plating unit type Picco+ allows a fast and spotless application of rhodium, gold and silver on small items. The handling is easy and clear, due to a helpful LED display.








Jentner
Small-Size Electroplating Unit Digital II

The Digital II is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling. The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed.






Jentner
Small-Size Electroplating Unit Digital V



The Digital V is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed.
